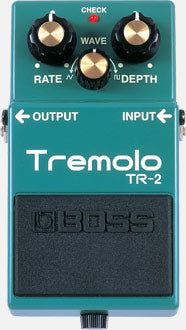

Boss TR-2 Tremolo

The BOSS TR-2 Tremolo pedal provides a classic tremolo effect in the most convenient and simple way. Perfectly capturing vintage tremolo effects, this pedal offers full control through its "Wave", "Rate", and "Depth" knobs.

• Classic tremolo effects – high-quality, vintage-style tremolo sounds
• Fast and convenient adjustment – simple interface and intuitive controls
• "Rate" knob – wide-range control to increase tremolo speed
• "Wave" knob – allows changing the tremolo waveform between triangle and square shapes
• "Depth" knob – adjusts the intensity of the tremolo effect
• 5-year BOSS warranty – reliable and long-lasting performance

Input and Output:
• Nominal Input Level: -20 dBu
• Input Impedance: 1 MΩ
• Nominal Output Level: -20 dBu
• Output Impedance: 1 kΩ
• Recommended Load Impedance: 10 kΩ or greater

Bypass:
• Buffered bypass

Controls:
• DEPTH – Adjusts the depth of the effect
• RATE – Adjusts the speed of the effect
• WAVE – Controls the waveform
• Pedal switch – On/off function

Indicators:
• CHECK indicator – Indicates battery status

Connectors:
• INPUT: 1/4" jack (standard guitar input)
• OUTPUT: 1/4" jack (standard output)
• DC IN: Input for power adapter

Power Supply:
• 9V Carbon-zinc or Alkaline battery
• PSA series adapter (sold separately)

Current Draw:
• 25 mA

Battery Life:
• Carbon: Approximately 12 hours
• Alkaline: Approximately 28 hours
(May vary depending on usage conditions.)

Dimensions and Weight:
• Width: 73 mm (2-7/8")
• Depth: 129 mm (5-1/8")
• Height: 59 mm (2-3/8")
• Weight (including battery): 385 g (14 oz)

Included Accessories:
• Owner's Manual and Safety Instructions
• 9V Carbon-zinc battery

Optional Accessories (sold separately):
• PSA series adapter

Note: Specifications are subject to change without notice.
